Ducted Air Conditioner Installation Mayfield NSW

Supply and Install a Panasonic Ducted Air Conditioner

Case Study: Valley Air Conditioning Upgrades Mayfield Home to 10.0kW Panasonic Inverter NX Series Ducted System with Airtouch 5 Zoning

When the homeowners of a family residence in Mayfield, NSW decided it was time to upgrade their air conditioning, they contacted Valley Air Conditioning for a solution that would deliver reliable comfort across the entire home. The property previously relied on a split system air conditioner, which had become less effective as the household’s needs changed.

After a site inspection and consultation, Valley Air Conditioning recommended a full-home ducted upgrade, starting with the safe removal of the existing unit and finishing with a premium 10.0kW Panasonic Inverter NX Series ducted air conditioner, ducted into five separate zones and controlled by the advanced LED Airtouch 5 zoning controller.

The Client’s Requirements

The homeowners had three main goals:

1. Replace the existing split system with a more suitable whole-home system
2. Improve comfort in multiple rooms, not just a single living space
3. Gain better control over airflow and energy usage through zoning

The split system had been adequate when the home was used differently, but it could no longer provide consistent temperature control across the bedrooms, living areas, and other frequently used spaces.

They wanted a solution that was powerful enough for the property, energy efficient, and capable of adapting to daily life, for example, cooling the living areas during the day and focusing on bedrooms at night.

Step 1: Decommissioning and Removing the Existing Split System

Before any new ducted equipment could be installed, Valley Air Conditioning carried out a full decommissioning and removal of the existing split system air conditioner.

This stage is essential not only for safety but also for compliance and environmental responsibility.

The team completed:

• Isolation of electrical connections in accordance with safety standards
• Recovery of refrigerant gas using approved equipment
• Safe removal of the indoor unit, outdoor condenser, and all associated pipework
• Clean-up and preparation of the installation areas

By removing the split system correctly, Valley Air Conditioning ensured the home was ready for the new ducted installation, with no leftover infrastructure or unsafe wiring that could cause issues later.

Step 2: Selecting the Right Ducted System for the Home

Following the assessment, the team recommended the Panasonic Inverter NX Series ducted air conditioner in a 10.0kW capacity.

This model was chosen because it provided the ideal combination of:

• Strong performance for whole-home heating and cooling
• Inverter efficiency, which allows the system to adjust output depending on demand
• Quiet operation, ideal for bedrooms and family living areas
• A reliable, modern platform compatible with advanced zoning controls

The 10.0kW size was carefully selected to suit the home’s layout, ceiling space, and total conditioned area. Correct sizing is one of the most important aspects of any ducted installation. If it is too small, it struggles; if it is too large, it can cycle unnecessarily, reducing efficiency and comfort.

Step 3: Ducted Design and 5-Zone Layout

A major benefit of ducted air conditioning is the ability to deliver airflow evenly throughout the home. However, not every household uses every room at the same time, which is why zoning was a key part of this Mayfield installation.

Valley Air Conditioning designed the ducted layout to service five separate zones, allowing the household to control comfort room-by-room and avoid cooling or heating unused areas.

The zoning configuration was designed to provide comfort in:

• Main living area
• Kitchen/dining area
• Master bedroom
• Secondary bedrooms
• Additional area (such as a study, hallway zone, or spare room)

Each zone was supplied with properly sized duct runs and outlets to ensure balanced airflow. This is a critical part of ducted system performance; the best unit in the world won’t deliver results if the ducting is poorly designed.

Step 4: Installing the Panasonic Inverter NX Series System

Once the design was finalised, Valley Air Conditioning commenced the installation.

The installation process included:

• Positioning the indoor ducted unit securely within the roof cavity
• Installing the outdoor condenser unit in an appropriate location with clear airflow
• Running insulated ducting to each zone
• Installing ceiling outlets and returns for efficient circulation
• Completing refrigerant pipework, drainage, and electrical connections
• Pressure testing and commissioning to ensure performance and reliability

Throughout the process, the team worked carefully to minimise disruption to the household and ensured all workmanship was clean, neat, and built to last.

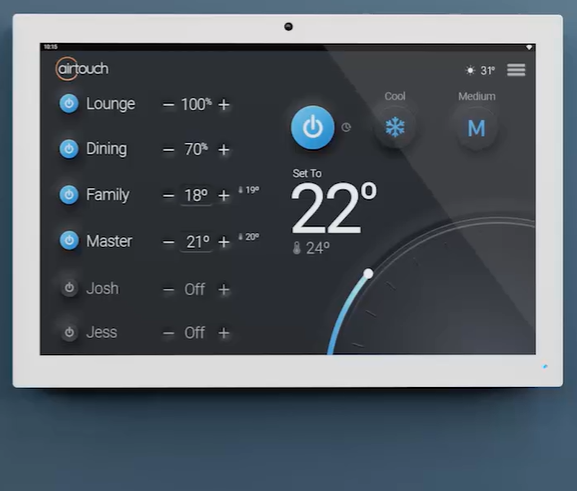

Step 5: Airtouch 5 LED Zone Control System

To maximise the benefit of the 5-zone ducted setup, Valley Air Conditioning installed an LED Airtouch 5 air conditioning zone controller.

Airtouch 5 gives homeowners far greater control than a standard ducted wall controller. It allows:

• Individual zone activation (turn rooms on/off as needed)
• Adjusting airflow percentages to different zones
• Simple control through an easy-to-read LED interface
• Better energy management by reducing wasted heating/cooling

For this household, Airtouch 5 was a game changer. Instead of running the entire home at full capacity, they could tailor comfort depending on who was home and which rooms were in use.

This not only improves comfort but can significantly reduce running costs over time.

Results: Whole-Home Comfort with Smarter Efficiency

After commissioning, the new Panasonic ducted system delivered an immediate improvement in comfort. The homeowners noticed:

• Faster and more even cooling across the home
• Better heating performance during colder Mayfield mornings
• Reduced noise compared to the old split system
• Greater flexibility through zoning and Airtouch 5 control

Most importantly, the system now matches the way the household actually lives, rather than forcing everyone to rely on a single-room split system.

Conclusion

This Mayfield installation is a perfect example of how the right ducted system, installed correctly and paired with smart zoning control, can transform a home’s comfort.

By professionally decommissioning and removing the old split system and upgrading the home to a 10.0kW Panasonic Inverter NX Series ducted air conditioner, Valley Air Conditioning delivered a high-performance, future-ready solution. With five zones and the LED Airtouch 5 controller, homeowners now have complete control over their indoor climate, all year round.

If you’re considering upgrading from a split system to ducted air conditioning in Mayfield or surrounding Newcastle suburbs, Valley Air Conditioning can design and install a tailored solution that suits your home and lifestyle.
