Ducted Air Conditioner Service Wallsend NSW

Repairing and Servicing a Ducted Air Conditioner

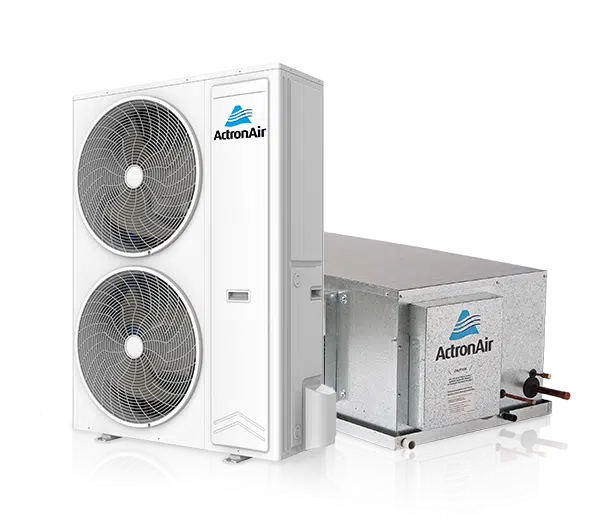

Valley Air Conditioning Repairs and Services a 14.3kW ActronAir Ducted System in Wallsend, NSW

Homeowners in Wallsend, NSW, recently called on the expertise of Valley Air Conditioning when their 14.3kW ActronAir ducted air conditioning system began to show signs of serious performance issues. The family noticed that their air conditioner was struggling to cool the home effectively, and on several occasions, the system shut down unexpectedly. After a thorough inspection, the Valley Air Conditioning technicians determined that the compressor was overheating due to restricted airflow caused by dirty filters.

This repair story highlights the importance of regular servicing for ducted air conditioning systems, especially in climates like the Hunter region, where systems often operate for long hours throughout the year.

Initial Call-Out and Inspection

The homeowner first noticed that the air coming from the vents was weaker than usual. Rooms were not cooling evenly, and the system seemed to be running much longer than normal to achieve the set temperature. Eventually, the air conditioner stopped mid-cycle, causing significant discomfort during a particularly warm spell.

When the Valley Air Conditioning service team arrived on site, their first step was to conduct a full diagnostic check of the ActronAir ducted system. ActronAir is a trusted Australian brand, known for its efficiency and reliability, but like all systems, it requires proper maintenance to keep performing at its best.

The technicians quickly identified the main issue: the filters were heavily clogged with dust and debris. This restriction reduced the airflow across the indoor coil, which in turn caused the compressor to overheat. Since the compressor is the heart of the system, overheating can lead to costly breakdowns if not addressed quickly.

Why Dirty Air Conditioner Filters Cause Serious Problems

Many homeowners underestimate the role of air filters in a ducted system. Filters are designed to trap dust, dirt, and allergens, preventing them from circulating through the home. However, when neglected, they can become so clogged that they obstruct airflow.

In this case, the reduced airflow meant the evaporator coil could not properly exchange heat. As a result, the compressor in the outdoor unit was forced to work harder, generating excess heat. Over time, this overheating can damage internal components, reduce efficiency, and significantly shorten the system’s lifespan.

Valley Air Conditioning’s inspection revealed that the filters had not been cleaned for an extended period, making them the root cause of the overheating issue.

Cleaning and Servicing the ActronAir System

Once the issue was identified, the technicians performed a comprehensive service on the 14.3kW ducted unit. The service included:

• Cleaning and replacing filters – The clogged filters were removed, cleaned thoroughly, and replaced where necessary. This immediately improved airflow across the indoor coil.

• Checking the compressor and outdoor unit – The compressor was tested to ensure it had not suffered permanent damage from the repeated overheating. Fortunately, it remained in good working condition.

• Inspecting ductwork – The ducts were checked for leaks or blockages that could further reduce airflow. Everything was intact and free of obstructions.

• Testing refrigerant levels – A correct refrigerant charge is critical for efficient operation. The team confirmed the levels were within ActronAir specifications.

• Electrical component check – All wiring and control boards were tested to ensure safe and reliable operation.


After servicing, the system was restarted and tested across multiple zones in the home. The difference was immediate: airflow was strong, temperatures were balanced across all rooms, and the compressor was operating within safe temperature limits.

Preventative Air Conditioning Maintenance for Long-Term Reliability

Valley Air Conditioning advised the homeowner on the importance of regular servicing for ducted systems. Ideally, filters should be checked and cleaned every three months, especially in homes with pets, children, or higher dust levels. A professional service at least once a year ensures the system remains energy efficient and avoids expensive breakdowns.

The technicians also explained that preventative maintenance helps:

• Lower electricity bills by improving efficiency.

• Extend the lifespan of the compressor and other major components.

• Improve indoor air quality by ensuring clean, filtered air circulates throughout the home.

• Reduce the risk of sudden breakdowns during peak summer or winter months.


The Outcome

Thanks to Valley Air Conditioning’s prompt response and expertise, the Wallsend homeowners once again have a fully functioning ActronAir ducted air conditioning system. The 14.3kW unit is now operating as designed, providing consistent comfort throughout the home.

The case serves as a reminder that even high-quality systems like ActronAir require regular care. Something as simple as neglected filters can escalate into serious issues if left unchecked. With the right maintenance schedule, however, ducted systems can deliver reliable performance for many years.

Conclusion

This Wallsend service call demonstrates Valley Air Conditioning’s commitment to keeping local homes comfortable year-round. By identifying the root cause of the overheating compressor and carrying out a full system service, their team restored efficiency and prevented costly damage to the ActronAir system.

For homeowners across Newcastle and the Hunter Valley, the lesson is clear: don’t wait until your air conditioner breaks down to call for service. Regular maintenance not only prevents issues like compressor overheating but also ensures your system runs efficiently, saving you money in the long run.
